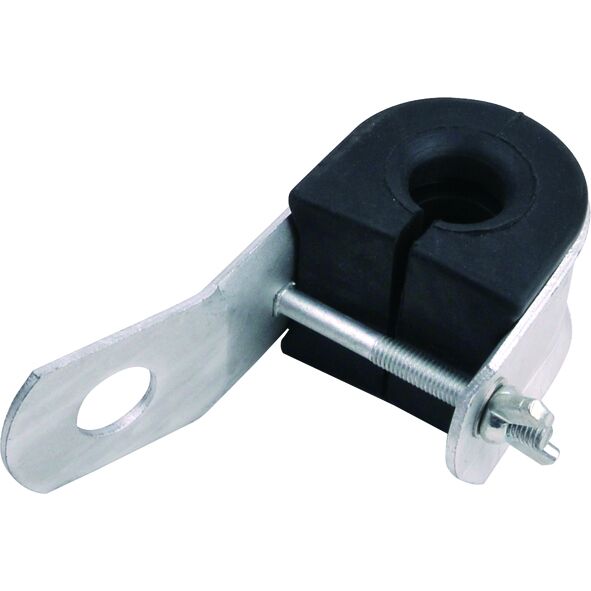

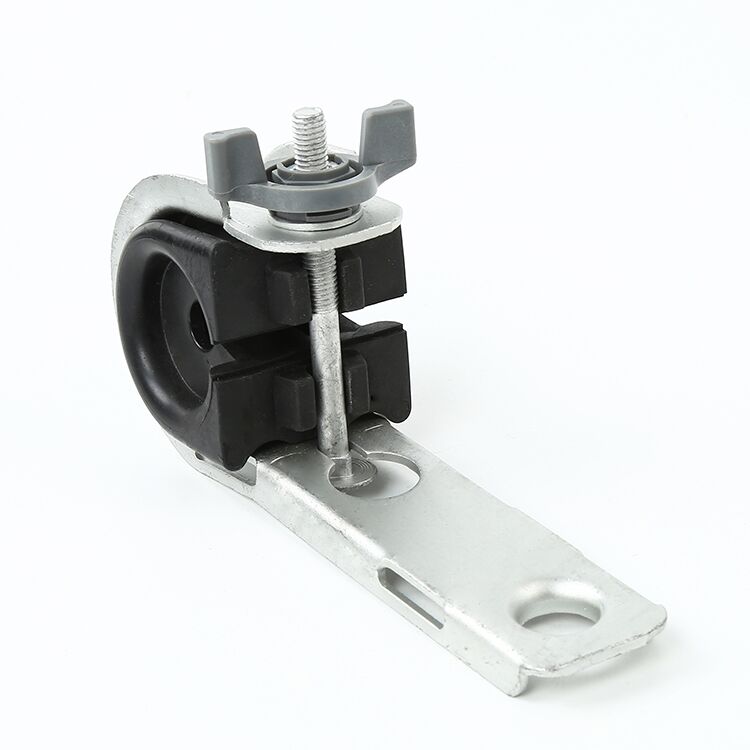

SC50 ADSS suspension clamp
Suspension Clamp for ADSS Cable include Double Suspension Clamp for ADSS Cable,Suspension Clamp for ADSS/OPGW cable,Short Span Suspension Clamp for ADSS Cables,Middle Short Span Suspension Clamp for ADSS Cable,Middle Span Suspension Clamp for ADSS Cable.
Additional information
| Model Type | SL1500 |
|---|---|
| Cable Size | 16-95mm² |
Products Overview

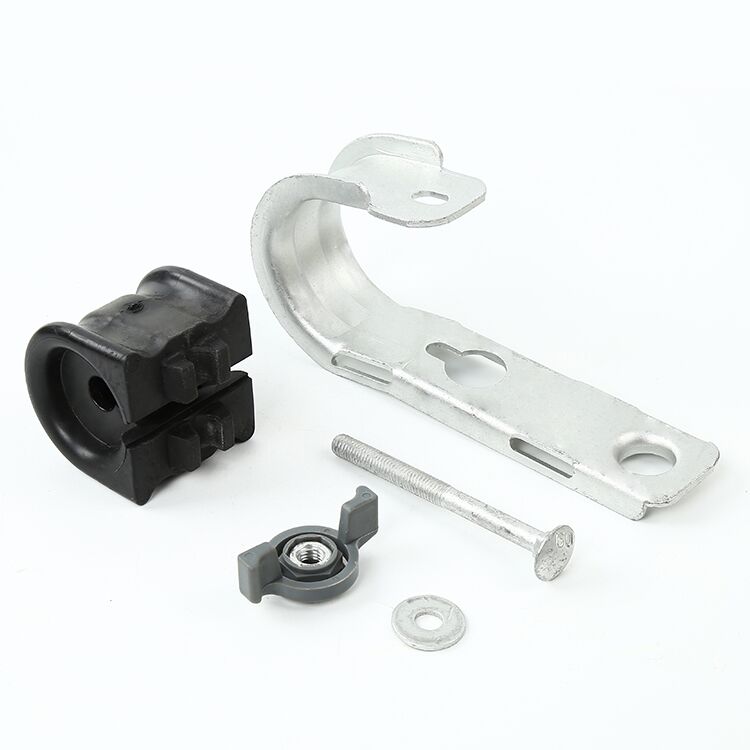

ADSSSuspension clamps designed to suspend ADSS round cable during construction of transmission lines, The ADSS clamp consists of plastic insert, which clamp the cable without damaging. A wide range of gripping capacities and mechanical resistance archived by wide product range, with different sizes of plastic inserts.
The clamp can install on the pole by using stainless steel band or pigtail hook.
Mechanical
Breaking Load:4KN
Specification
Use: Used for hanging the cable.
Construction:UV resistant plastic
Installation: Messenger wire is installed into the groove and locked with the locking part.
Tools required: No tools required
Standard:NFC 33-042; EN 50-483
|
Type
|
Suitable wire(mm2)
|
|
SC50
|
16-50
|
|
SC95
|
50-95
|
|
SC150
|
120-150
|
|
PSP 25-120
|
4×25-4×120
|
|
SL1500
|
16-95
|
|
SL2500
|
16-95
|
|
SL95
|
16-95
|
|
SL1.1A
|
16-95
|
Suspension Clamp for ADSS application
