SL10-95/70 10kv high voltage Insulation piercing connector
Insulation piercing clamps can be T-shaped branches at any position of the cable, no need to cut off the main cable.Easy installation,Strong conductivity,Good waterproof performance.
Additional information
| Products Code | SL2-95 |
|---|---|
| Main line | 16-95MM2 |
| Branch Line | 4-50MM2 |
Technical specification
| Dimensions | |
| Main Cable Line: | 25-95mm² |
| Branch Cable Line: | 16-70mm² |
| Norminal Current: | 226A |
| Piercing Depth: | 4.5-6mm |
| Standard: | NFC33020,EN50483 |
| Features | |
| Bolt: | 2 BOLTS |
| Mechnical | |
| Tightening Torque: | 32Nm |
Normal Package
Inner Package: 6pieces in inner bag, 24pieces in inner box
PCS/CTN: 120pcs
Carton Size: 45.5*36*21cm
G.W./N.W.: 17/16KGS
10kv insualtion piercing connector
|
10kv Insulation Piercing Connector
|
||||||||
|
Type
|
Equivalent type
|
Main Line Section
|
Branch Section (mm²)
|
Norminal Current(A)
|
Dimensions (mm)
|
Weight (g)
|
Piercing Depth (mm)
|
Bolt
|
|
SL10-95/70
|
JJC10-1
|
25-95
|
16-70
|
226
|
68*82.5*107.5
|
/
|
4.5-6
|
2
|
|

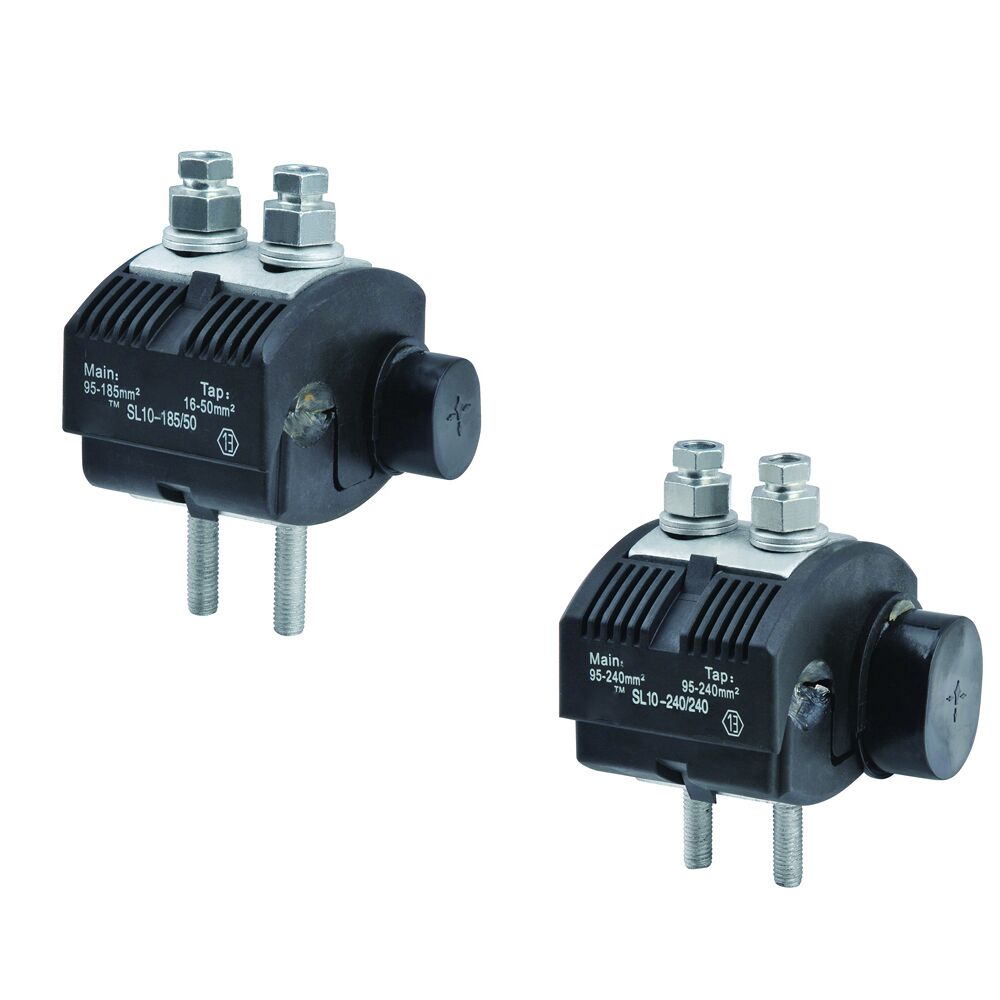

SL10-185/50
|
JJC10-2
|
95-185
|
16-50
|
180
|
78.5*77.5*112.5
|
/
|
4.5-6
|
2
|
|
SL10-240/150
|
JJC10-3
|
95-240
|
50-150+
|
366
|
84*83*112.5
|
/
|
4.5-6
|
2
|
|

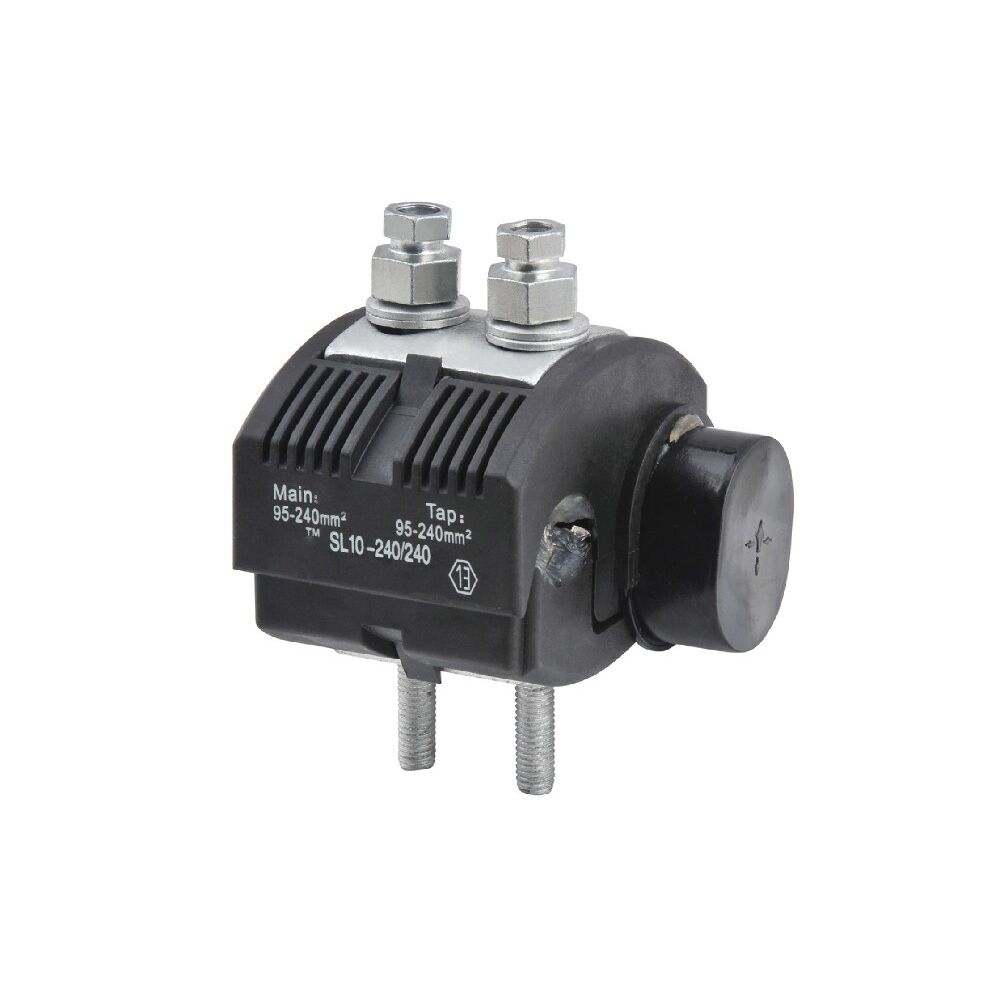

SL10-240/240
|
JJC10-4
|
95-240
|
95-240
|
530
|
89*85.5*112.5
|
/
|
4.5-6
|
2
|
Applications
The insulation piercing connector has the characteristics of strong conductivity, low temperature rise of the clamp, high pressure resistance, moisture-proof, waterproof, anti-corrosion, small size, light weight, safety and convenience. It is the best connector for insulated wires (cables)。
