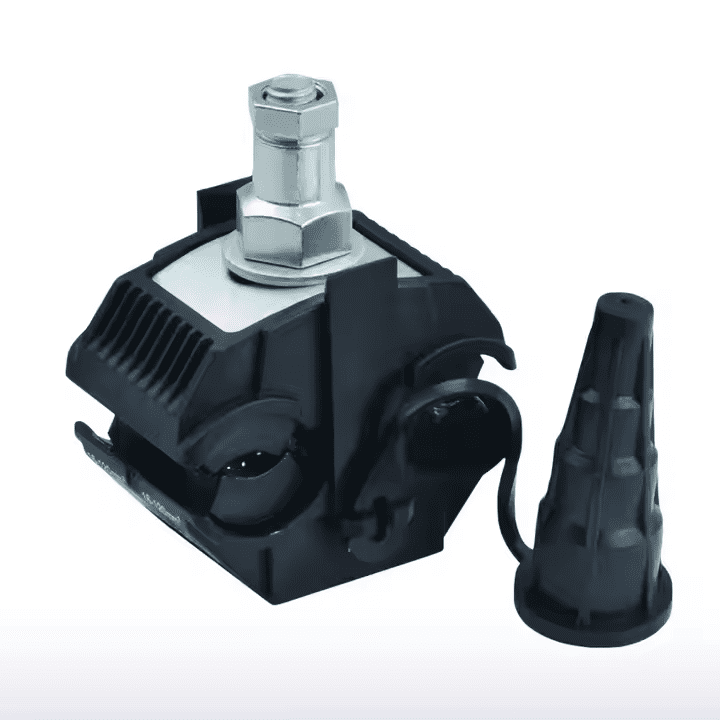

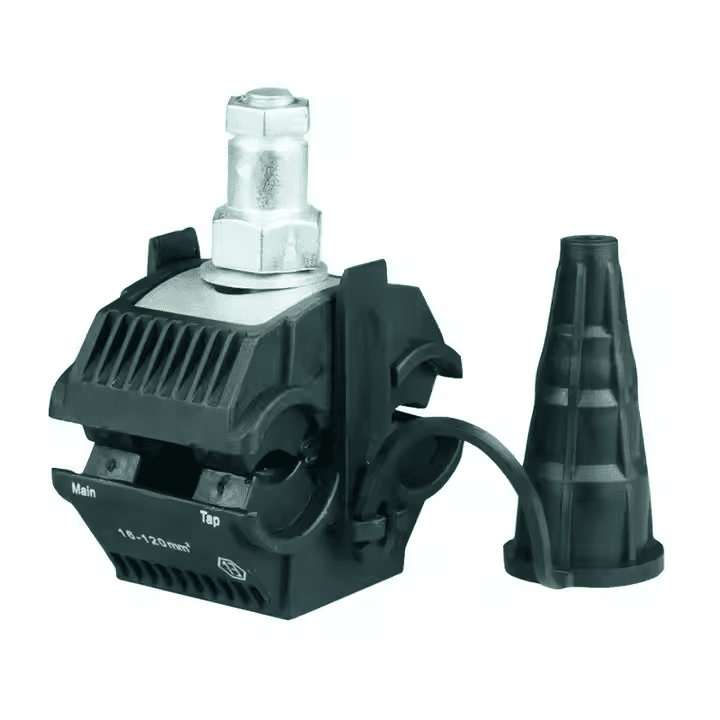

1KV Copper Aluminum Teeth Insulation Piercing Connector SL3-95
SL3-95 Insulation Piercing Connector supports 25-95mm² main/branch cables with a 214A current rating. Compact design (50×61×100mm, 198g) and 3-4mm piercing depth ensure secure, tool-free connections via single bolt. Ideal for high-current power distribution, industrial grids, and renewable energy systems.
Additional information
Product Description:
Used for branch connection of insulated cable for building distribution system, connection of LV overhead insulated cables, branch connection of LV insulated service-entrance cable, distribution system of streetlight， etc.
Main line: insulated copper or aluminum
Branch wire: insulated copper or aluminum
Live-line work or power-cut work is allowable

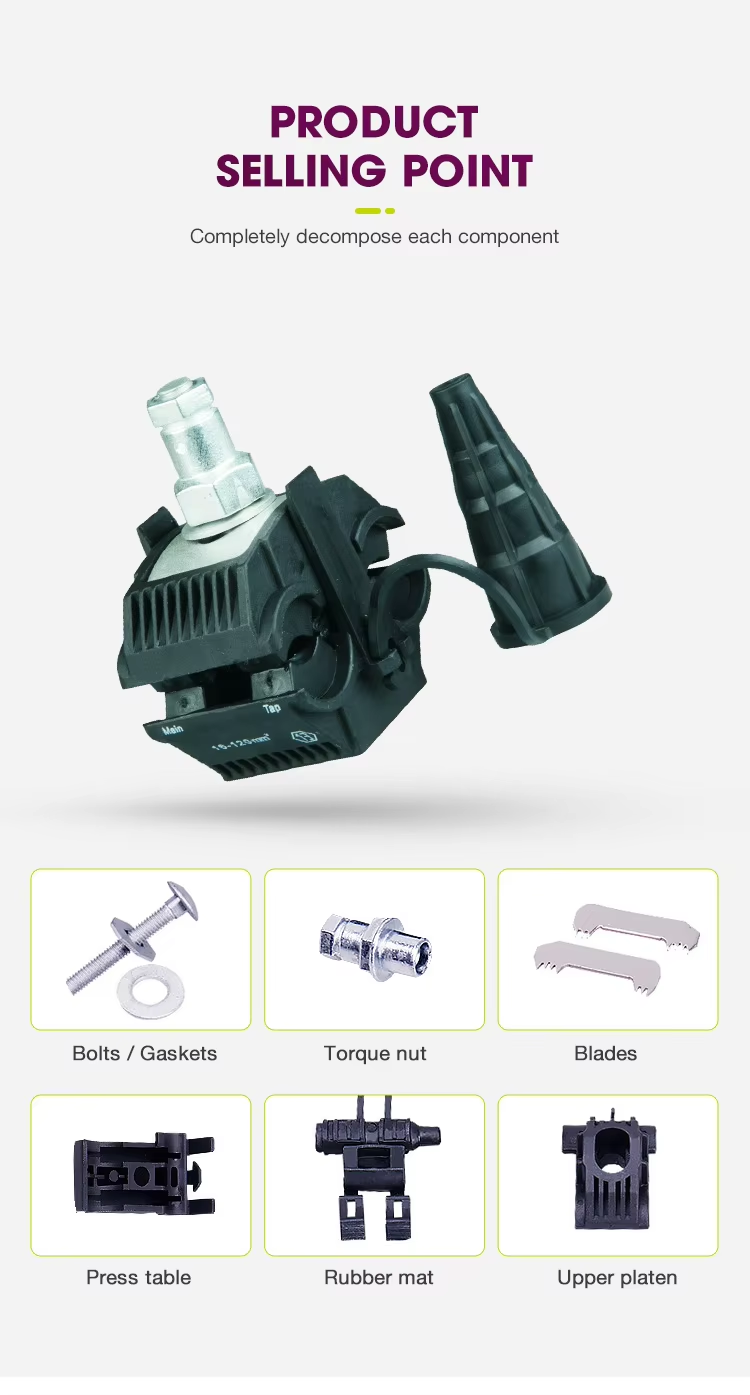

The main body of the connector is made of high-strength insulating material that is resistant to mechanical change or climatic variation.
The connector features a property that it can withstand a voltage of 6kV in water without a breakdown phenomenon.
*The waterproof sealing end cap of the branch line prevents water from entering the branch connected conductor; it can be branched on the left or right side according to demand.
| Dimensions | |
| Main Cable Line | 25-95mm² |
| Branch Cable Line | 25-95mm² |
| Norminal Current | 214A |
| Dimensions | 50x61x100 |
| Piercing Depth | 3-4mm |
| Weight | 198g |
| Bolts | 1 PCS |
Performance Test
Mechanical performance: The clamping force of the wire clamp is greater than 1/10 of the breaking force of the steel wire, in line with GB2314-1997 standard.
Temperature rise performance: keep the temperature rise of the connecting wire under high current conditions.
Thermal cycling performance: in line with GB/T2317-2000 power fixture thermal cycling test standards.
Waterproof insulation performance: in line with GB/T13140-1998 part 2 standard.
Corrosion resistance: Successfully passed three 14-day cycle tests under sulfur dioxide and salt spray environments.
Environmental aging performance: Exposed to ultraviolet rays, dry and humid environments, temperature changes, and thermal shock for six weeks.
Fire resistance: Insulation material meets the requirements of GB/T5169.4, chapter 4-10 after the burning wire test.
The steps to install Insulation Piercing Connector：
