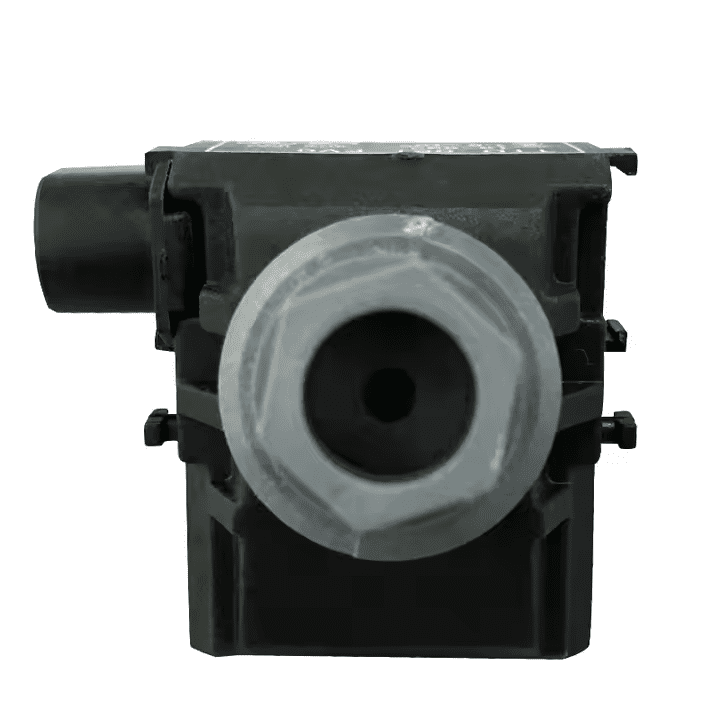

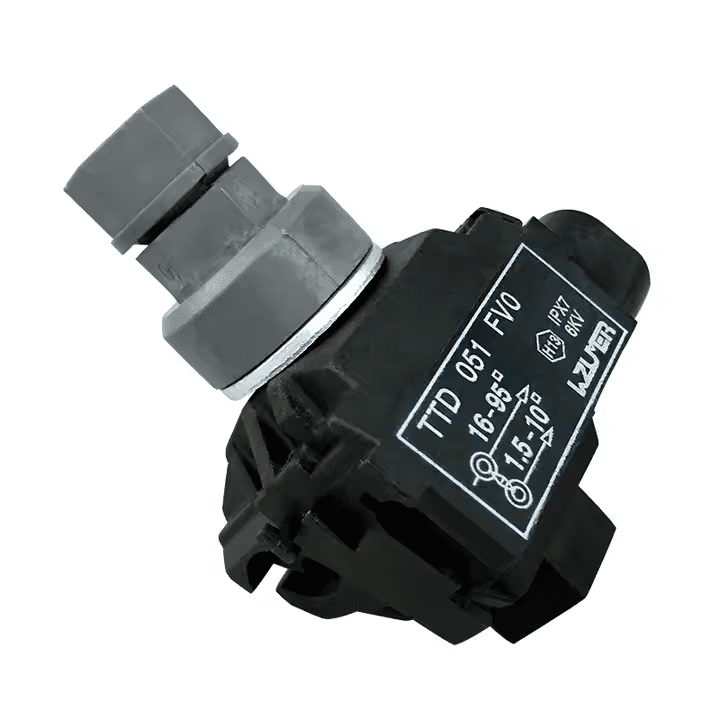

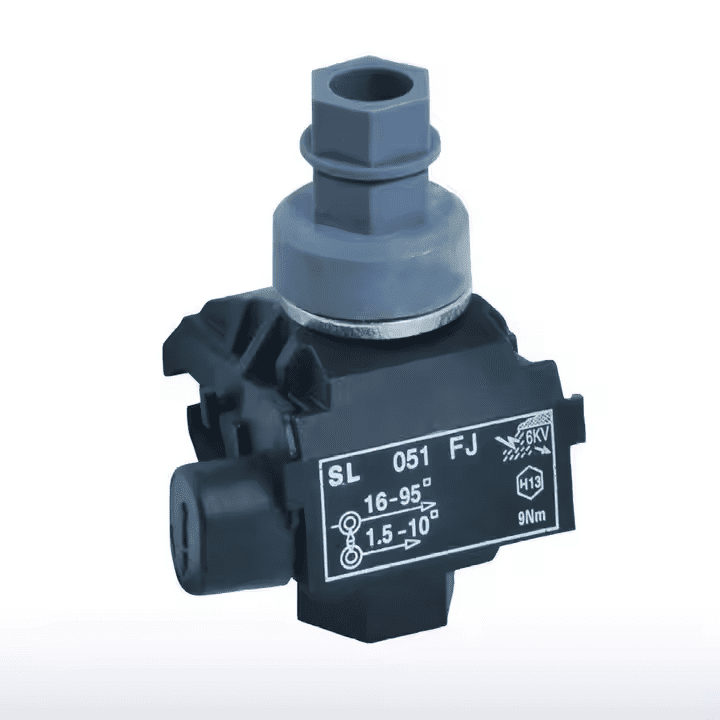

SL051FJ insulation piercing connector 16-95mm² for abc cable

Description

Engineered to combine tool-free installation with robust performance, SL051FJ / TTD051FJ Insulation Piercing Connectors (IPCs) feature tin-plated copper/aluminum alloy blades that securely clamp onto aluminum or copper stranded conductors without stripping insulation. The fiberglass-reinforced plastic housing ensures high mechanical strength and environmental resistance, while the torque-control shear bolt guarantees precise tightening for optimal electrical contact.

Ideal for low-voltage applications like vehicle wiring harnesses, electronic locks, alarms, and telecom networks, IPCs eliminate complex prep work and reduce installation time. Their corrosion-resistant design and compatibility with diverse conductors make them a trusted solution for utility distribution and industrial systems.

Dimensions

Main Cable Line	16-95mm²
Branch Cable Line	1.5-10mm²

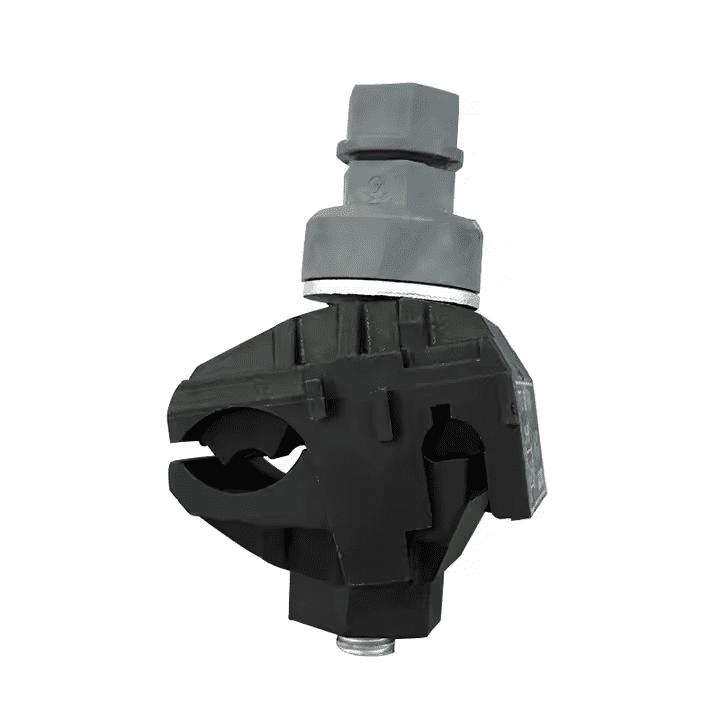

Max Current	84A
Bolt
Number	1 X M8
H(mm)	13
Torque nut	F1309

Performance Test

Mechanical performance

The clamping force of the wire clamp is greater than 1/10 of the breaking force of the steel wire, which is in line with the GB2314-1997 standard.

Temperature rise performance

keeps the temperature rise of the connecting wire under high current conditions.

Thermal cycling performance

in line with GB/T2317-2000 power fixture thermal cycling test standards.

Waterproof insulation performance

It is in line with the GB/T13140-1998 part 2 standard. It can withstand a voltage of 6 kV in water without a breakdown phenomenon.

Corrosion resistance

Successfully passed three 14-day cycle tests under sulfur dioxide and salt spray environments.

Environmental aging performance

Exposed to ultraviolet rays, dry and humid environments, temperature changes, and thermal shock for six weeks.

Fire resistance

Insulation material meets the requirements of GB/T5169.4, chapter 4-10, after the burning wire test.
