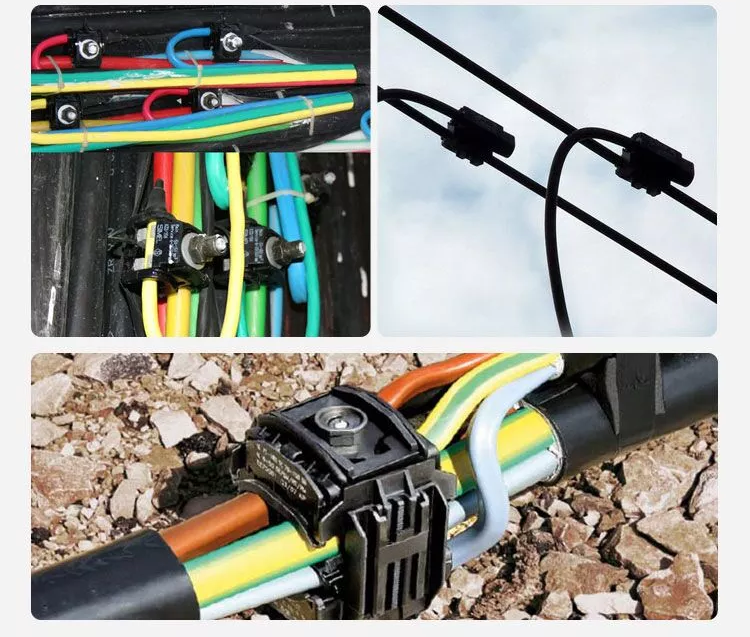

Choosing the right insulated piercing connector (IPC) ensures safe, efficient, and long-lasting electrical connections. Whether you’re working on residential wiring, street lighting, or industrial power distribution, this guide breaks down the key factors to consider when selecting IPCs.
1. Match the IPC to Your Conductor Specifications
Material Compatibility
Conductor Type: Confirm whether your wire is copper or aluminum. IPCs are designed with specific blade materials:
Aluminum conductors: Use insulated piercing connectors with aluminum blades for cost efficiency.
Copper conductors: Opt for tinned copper or brass blades. Tinned copper offers better conductivity but is slightly pricier than brass.
Avoid Galvanic Corrosion: Ensure the IPC’s blade material matches the conductor to prevent electrochemical reactions.
Conductor Size
Check your wire’s cross-sectional area (0.75–400mm²) and diameter.
The insulated piercing connector must fit snugly around the conductor for optimal piercing. A mismatched size can lead to poor connections or installation failures.
2. Evaluate Electrical & Environmental Requirements
Voltage and Current Ratings
Select an insulated piercing connector rated for your system’s voltage (e.g., 1kV, 10kV, 20kV).
Ensure the current load capacity aligns with your circuit’s demands to avoid overheating.
Environmental Resistance
Outdoor/Harsh Environments: Choose IPCs with UV-resistant, waterproof, and corrosion-proof materials.
Chemical Exposure: For industrial settings, prioritize chemically resistant coatings.
3. Prioritize Performance and Safety
Electrical Conductivity
Look for insulation piercing connectors with low contact resistance to minimize energy loss and heat generation.
Ensure the piercing tips are sharp and centered to penetrate insulation without damaging the conductor.
Insulation & Durability
Sealed Design: Prevents moisture ingress and maintains insulation integrity.
Mechanical Strength: Fiber-reinforced housings resist vibration, twisting, and extreme temperatures (up to 960°C).
4. Verify Certifications and Test Reliability
Compliance Standards
Ensure IPCs meet UL, CE, RoHS, or other industry certifications for safety and quality.
Pre-Purchase Testing
Request samples from manufacturers to test compatibility and performance.
For large orders, consider third-party testing (e.g., SGS) to verify compliance before delivery.
5. Consider Customization Options
Tailored Designs: Some projects require unique blade angles, insulator types, or color coding.
OEM/ODM Services: Brands like WZUMER offer custom IPCs for specialized applications.
Why Choose WZUMER Insulated Piercing Connectors?
✅ Wide Compatibility: Suitable for copper, aluminum, and mixed-material conductors.
✅ Certified Quality: Complies with international standards for safety and durability.
✅ Custom Solutions: Bespoke designs to meet unique project needs.
✅ Expert Support: Technical guidance from selection to installation.
Conclusion
Selecting the right IPC involves balancing material compatibility, environmental needs, electrical performance, and certifications. By prioritizing these factors, you can ensure reliable, maintenance-free connections for decades.
Need High-Quality IPCs? Contact WZUMER today for customized solutions, bulk pricing, and trusted expertise!
